Please send RFQ , we will respond immediately.

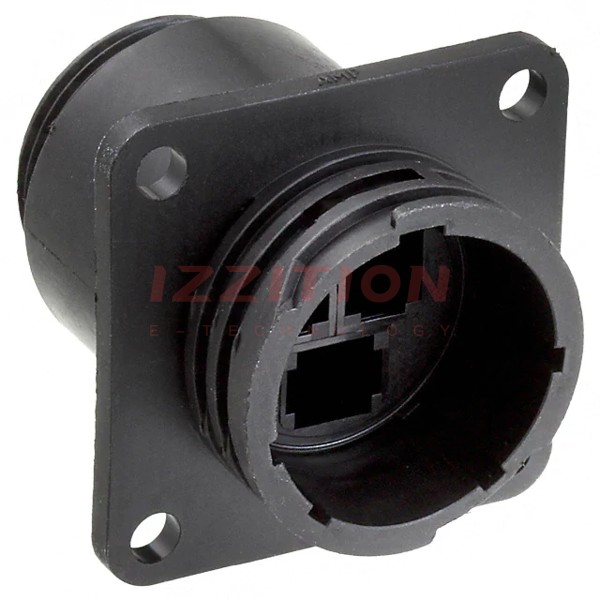

| Part Number | 206036-2 | 206037-2 | 206036-3 | 206038-2 | 206036-4 | 206036-8 | 206036-5 | 206036-7 | 206036-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle Housing | Plug Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing | Receptacle Housing |
| Type | For Male Pins | For Female Sockets | For Male Pins | For Female Sockets | For Male Pins | For Male Pins | For Male Pins | For Male Pins | For Male Pins |
| Number of Positions | 3 (Power) | 3 (Power) | 16 | 28 | 16 | 16 | 16 | 16 | 16 |
| Shell Size - Insert | 17-3 | 17-3 | 17-16 | 17-28 | 17-16 | 17-16 | 17-16 | 17-16 | 17-16 |
| Shell Size, MIL | - | - | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | - | - | 16 | 20 | 16 | 16 | 16 | 16 | 16 |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Mounting Feature | Flange | - | - | - | Flange | Flange | - | Flange | Flange |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | A | A | A | Keyed | A | A | A | A | A |
| Primary Material | - | - | - | - | - | - | - | - | - |
| Shell Material | Polyamide (PA), Nylon | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA), Nylon | Thermoplastic | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Shell Finish | - | - | - | - | - | - | - | - | - |
| Housing Color | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Ingress Protection | - | - | - | - | Environment Resistant | - | Environment Resistant | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | Coupling Nut | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
