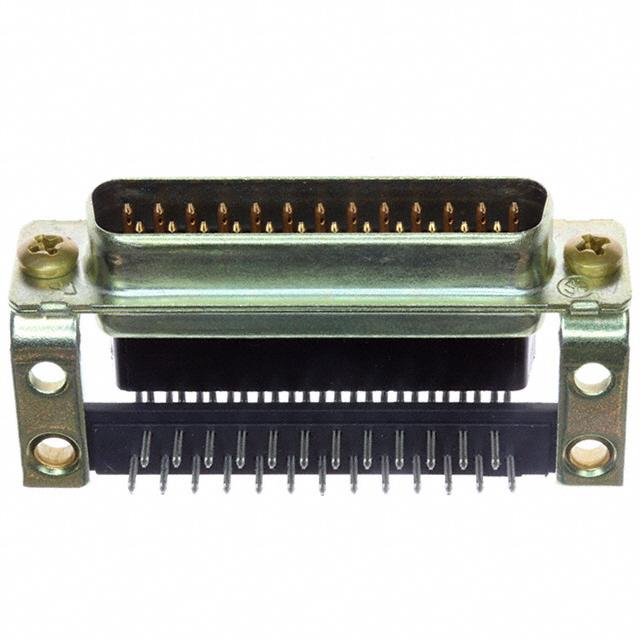

| Part Number | 205857-2 | 205557-2 | 205857-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Aerospace, Defense and Marine | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 25 | 15 | 25 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Free Hanging (In-Line) | Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) | 2 (DA, A) | 3 (DB, B) |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Mating Side, Standard Screws (4-40) | Housing/Shell (Unthreaded) | Mating Side, Standard Screws (4-40) |
| Termination | Solder | Crimp | Solder |
| Primary Material | - | - | - |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc | Steel, Cadmium Plated | Steel, Yellow Chromate Plated Zinc |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 50.0µin (1.27µm) | - |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | - | UL94 V-0 |
| Current Rating (Amps) | 6A | 7.5A | 6A |
| Backset Spacing | 0.545" (13.84mm) | - | 0.545" (13.84mm) |
| Features | Mounting Brackets | - | Mounting Brackets |
