205734-7
  • Share:

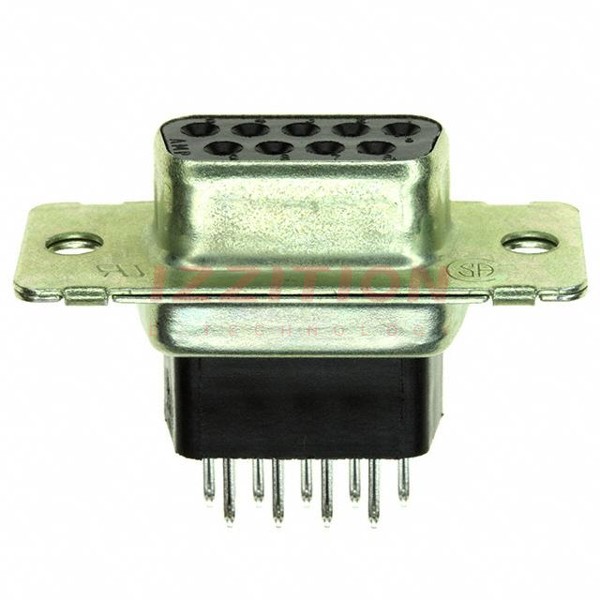

TE Connectivity AMP Connectors 205734-7

Manufacturer No:
205734-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
205734-7 Datasheet
ECAD Model:
-
Description:
CONN D-SUB RCPT 9POS VERT SLDR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub
Connector Type:Receptacle, Female Sockets
Number of Positions:9
Number of Rows:2
Mounting Type:Through Hole
Shell Size, Connector Layout:1 (DE, E)
Contact Type:Signal
Flange Feature:Housing/Shell (Unthreaded)
Termination:Solder
Primary Material:-
Shell Material, Finish:Steel, Yellow Chromate Plated Zinc
Contact Finish:Gold
Contact Finish Thickness:Flash
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):6A
Backset Spacing:-
Features:-
0 Remaining View Similar

In Stock

$10.65
60

Please send RFQ , we will respond immediately.

Similar Products

Part Number 205734-7 205735-7   205737-7   205714-7   205733-7   205734-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active
Connector Style D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub
Connector Type Receptacle, Female Sockets Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Receptacle, Female Sockets
Number of Positions 9 15 25 37 9 9
Number of Rows 2 2 2 2 2 2
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Shell Size, Connector Layout 1 (DE, E) 2 (DA, A) 3 (DB, B) 4 (DC, C) 1 (DE, E) 1 (DE, E)
Contact Type Signal Signal Signal Signal Signal Signal
Flange Feature Housing/Shell (Unthreaded) Housing/Shell (Unthreaded) Housing/Shell (Unthreaded) Housing/Shell (Unthreaded) Housing/Shell (Unthreaded) Housing/Shell (Unthreaded)
Termination Solder Solder Solder Solder Solder Solder
Primary Material - - - - - -
Shell Material, Finish Steel, Yellow Chromate Plated Zinc Steel, Yellow Chromate Plated Zinc Steel, Yellow Chromate Plated Zinc Steel, Yellow Chromate Plated Zinc Steel, Yellow Chromate Plated Zinc Steel, Yellow Chromate Plated Zinc
Contact Finish Gold Gold Gold Gold Gold Gold
Contact Finish Thickness Flash 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) Flash
Ingress Protection - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Current Rating (Amps) 6A 6A 6A 6A 6A 6A
Backset Spacing - - - - - -
Features - - - - - -
