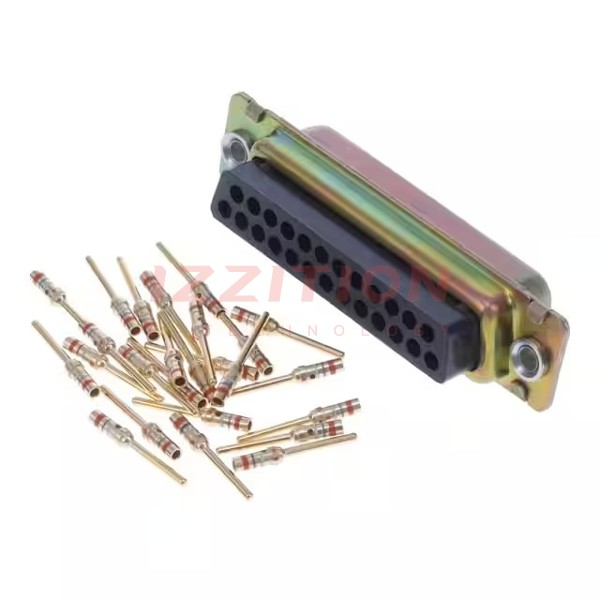

| Part Number | 205487-2 | 205483-2 | 205485-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Aerospace, Defense and Marine | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 25 | 9 | 37 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) | 1 (DE, E) | 4 (DC, C) |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Termination | Crimp | Crimp | Crimp |
| Primary Material | - | - | - |
| Shell Material, Finish | Steel, Cadmium Plated | Steel, Cadmium Plated | Steel, Cadmium Plated |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | - | 50.0µin (1.27µm) | 50.0µin (1.27µm) |
| Ingress Protection | - | - | - |
| Material Flammability Rating | - | - | - |
| Current Rating (Amps) | - | 7.5A | - |
| Backset Spacing | - | - | - |
| Features | Grounding Indents | - | - |
