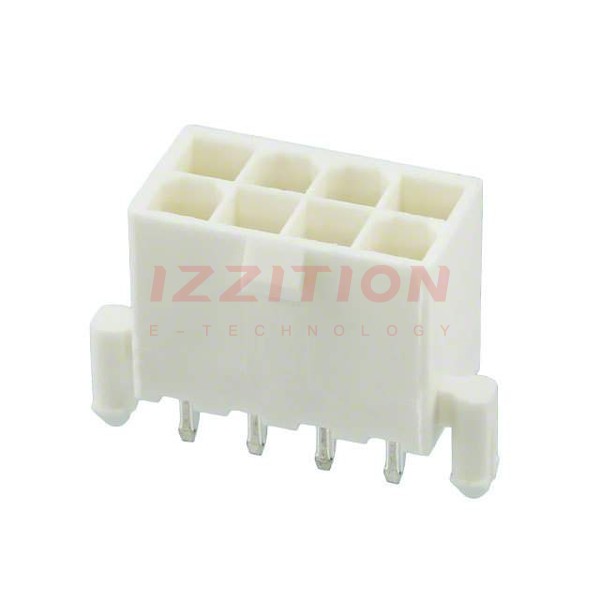

TE Connectivity AMP Connectors 2029059-8

Manufacturer No:
2029059-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
2029059-8 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 8POS 4.2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:Board Lock, Glow Wire Compliant
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):9A
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

$1.23
661

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2029059-8 2029059-2   2029059-4   2029059-6
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active
Connector Type Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.165" (4.20mm) - 0.165" (4.20mm) 0.165" (4.20mm)
Number of Positions 8 2 4 6
Number of Rows 2 2 2 2
Row Spacing - Mating 0.165" (4.20mm) 0.165" (4.20mm) 0.165" (4.20mm) 0.165" (4.20mm)
Number of Positions Loaded All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole Through Hole Through Hole
Termination Solder Solder Solder Solder
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Contact Length - Mating - - - -
Contact Length - Post 0.138" (3.50mm) 0.138" (3.50mm) 0.138" (3.50mm) 0.138" (3.50mm)
Overall Contact Length - - - -
Insulation Height 0.504" (12.80mm) 0.504" (12.80mm) 0.504" (12.80mm) 0.504" (12.80mm)
Contact Shape Square Square Square Square
Contact Finish - Mating Tin Tin Tin Tin
Contact Finish Thickness - Mating - - - -
Contact Finish - Post Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass
Insulation Material Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6
Features Board Lock, Glow Wire Compliant Board Lock, Glow Wire Compliant Board Lock, Glow Wire Compliant Board Lock, Glow Wire Compliant
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color White White White White
Current Rating (Amps) 9A 9A 9A 9A
Voltage Rating 600VAC 600VAC 600VAC 600VAC
