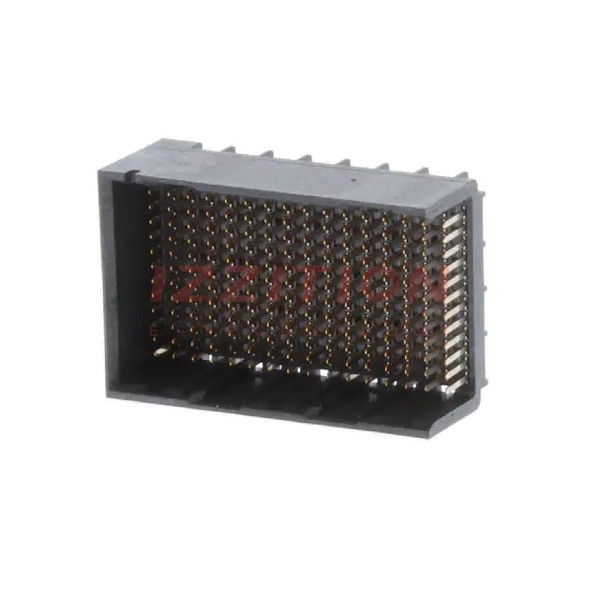

| Part Number | 2007837-1 | 2007838-1 | 2007839-1 | 2007737-1 | 2007807-1 | 2007827-1 | 2007831-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | - | - | Backplane | Backplane |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins | Header, Male Pins and Blades | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins | Header, Male Pins |
| Connector Style | - | Impact | - | Impact, Guide Right | Impact | Impact, Guide Left | Impact, Guide Right |
| Number of Positions | 192 | 192 | 192 | 180 | 144 | 192 | 192 |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Pitch | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | - | 0.075" (1.91mm) | 0.075" (1.90mm) | 0.075" (1.90mm) |
| Number of Rows | 12 | 12 | 12 | 18 | 9 | 12 | 12 |
| Number of Columns | 16 | 16 | 16 | 10 | 16 | 16 | 16 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | 128 Signal, 64 Ground | - | - | - | 128 Signal, 64 Ground | 128 Signal, 64 Ground |
| Features | - | - | - | Board Guide | - | Guide Pin | Guide Pin |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black | Black |
