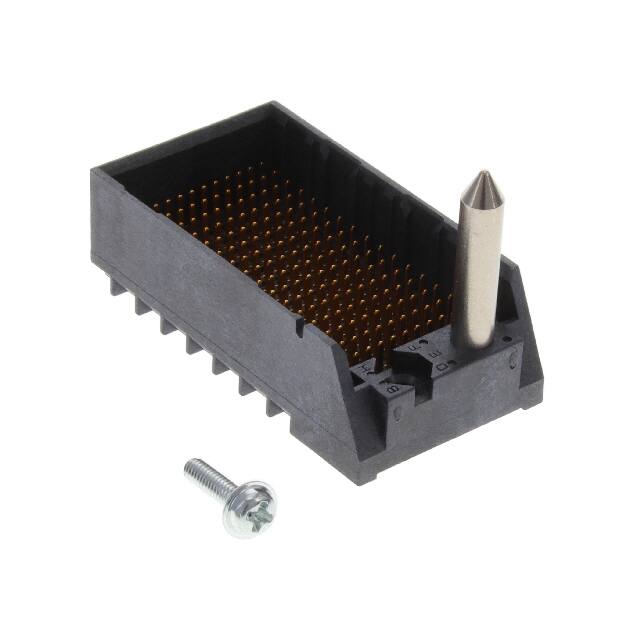

| Part Number | 2007827-1 | 2007837-1 | 2007829-1 | 2007827-2 | 2007807-1 | 2007820-1 | 2007821-1 | 2007825-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | Backplane | - | Daughtercard | - | - | - | - | - |
| Connector Type | Header, Male Pins | Header, Male Pins and Blades | Header, Male Pins and Blades | - | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins |
| Connector Style | Impact, Guide Left | - | Impact, Guide Right | - | Impact | Impact | Impact | Impact, Guide Left |
| Number of Positions | 192 | 192 | 192 | - | 144 | 120 | 120 | 192 |
| Number of Positions Loaded | All | All | All | - | All | All | All | All |
| Pitch | 0.075" (1.90mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | - | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) |
| Number of Rows | 12 | 12 | 12 | - | 9 | 12 | 12 | 12 |
| Number of Columns | 16 | 16 | 16 | - | 16 | 10 | 10 | 16 |
| Mounting Type | Through Hole | Through Hole | Through Hole | - | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | - | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 128 Signal, 64 Ground | - | - | - | - | - | - | 128 Signal, 64 Power |
| Features | Guide Pin | - | - | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | - | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | - | Black | Black | Black | Black |
