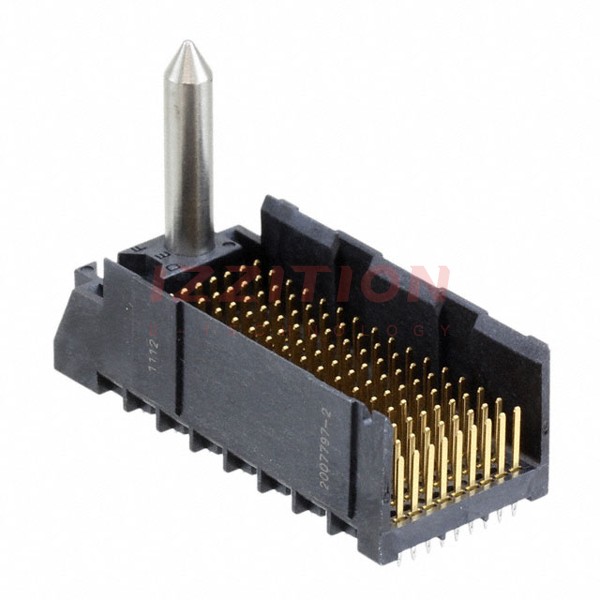

| Part Number | 2007797-2 | 2007777-2 | 2007793-2 | 2007797-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | - | Daughtercard |
| Connector Type | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins |
| Connector Style | Impact, Guide Right | Impact, Guide Left | Impact, Guide Left | Impact, Guide Right |
| Number of Positions | 144 | 90 | 144 | 144 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) |
| Number of Rows | 9 | 9 | 9 | 9 |
| Number of Columns | 16 | 10 | 16 | 16 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - |
| Features | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black |
