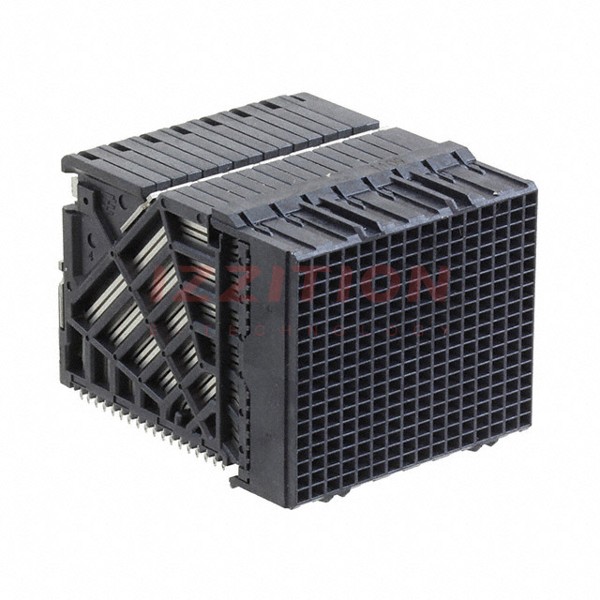

| Part Number | 2007747-1 | 2007777-1 | 2007797-1 | 2007717-1 | 2007737-1 | 2007740-1 | 2007741-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | Daughtercard | - | Daughtercard | Daughtercard | - | Daughtercard | Daughtercard |
| Connector Type | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | Impact | Impact | Impact, Guide Right | Impact | Impact, Guide Right | Impact, Guide Right | Impact |
| Number of Positions | 288 | 90 | 144 | 120 | 180 | 180 | 180 |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Pitch | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | - | - | 0.075" (1.91mm) |
| Number of Rows | 18 | 9 | 9 | 12 | 18 | 18 | 18 |
| Number of Columns | 16 | 10 | 16 | 10 | 10 | 10 | 10 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - | - | - | - |
| Features | - | - | - | - | Board Guide | Board Guide | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black | Black |
