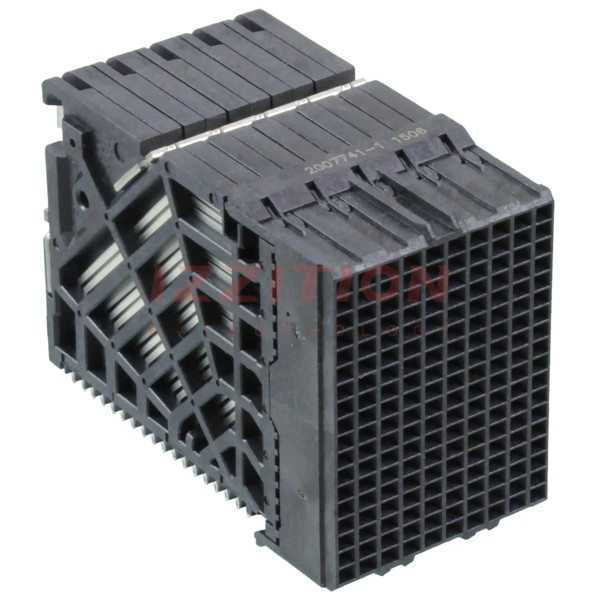

| Part Number | 2007741-1 | 2007791-1 | 2007781-1 | 2007747-1 | 2057741-1 | 2007711-1 | 2007721-1 | 2007740-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | Daughtercard | Backplane | - | Daughtercard | - | - | Daughtercard | Daughtercard |
| Connector Type | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | Impact | Impact | Impact | Impact | Impact, Guide Right | - | Impact, Guide Left | Impact, Guide Right |
| Number of Positions | 180 | 90 | 90 | 288 | 96 | 144 | 192 | 180 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All |
| Pitch | 0.075" (1.91mm) | 0.075" (1.90mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | 0.075" (1.91mm) | - |
| Number of Rows | 18 | 9 | 9 | 18 | 6 | 9 | 12 | 18 |
| Number of Columns | 10 | 10 | 10 | 16 | 16 | 16 | 16 | 10 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | 60 Signal, 30 Ground | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | Board Guide | Board Guide |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 50.0µin (1.27µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black | Black | Black |
