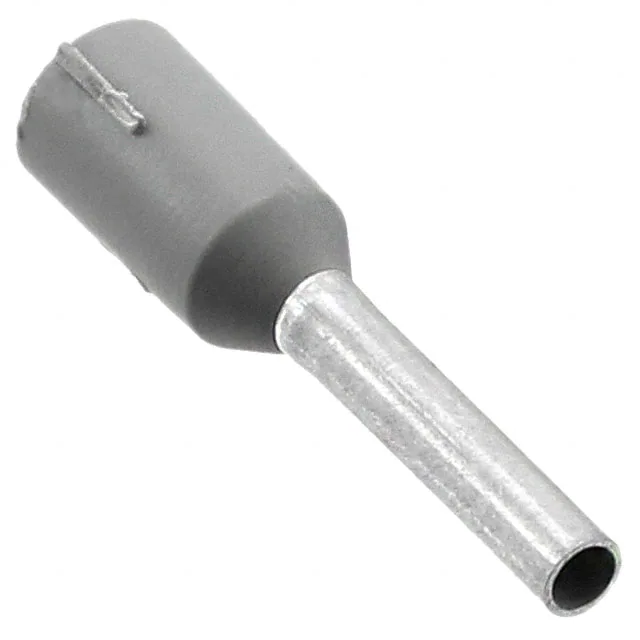

| Part Number | 2-966067-1 | 2-966067-2 | 2-966067-4 | 2-966067-5 | 2-966067-6 | 2-966067-3 | 2-966067-7 | 1-966067-1 | 2-966067-0 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Single Wire | Single Wire | Single Wire | Single Wire | Single Wire | Single Wire | Single Wire | Single Wire | Single Wire |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Style | DIN | DIN | DIN | DIN | DIN | DIN | DIN | DIN | DIN |
| Size | 11 AWG (4.00mm²) | 10 AWG (6.00mm²) | 7 AWG (10.00mm²) | 7 AWG (10.00mm²) | 5 AWG (16.00mm²) | 10 AWG (6.00mm²) | 5 AWG (16.00mm²) | 17 AWG (1.00mm²) | 11 AWG (4.00mm²) |
| Length - Overall | 26.00mm | 20.00mm | 22.00mm | 28.00mm | 24.00mm | 26.00mm | 28.00mm | 18.00mm | 20.00mm |
| Length - Pin | 18.00mm | 12.00mm | 12.00mm | 18.00mm | 12.00mm | 18.00mm | 18.00mm | 12.00mm | 12.00mm |
| Color | Gray | Yellow | Red | Red | Blue | Yellow | Blue | Red | Gray |
