2-826646-6
  • Share:

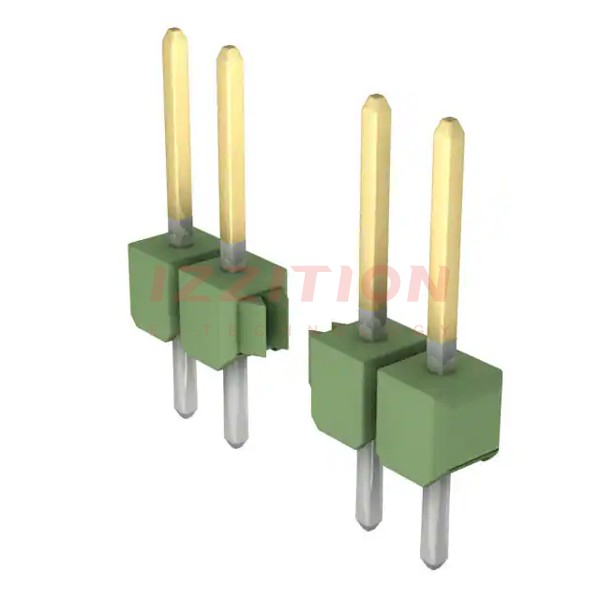

TE Connectivity AMP Connectors 2-826646-6

Manufacturer No:
2-826646-6
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-826646-6 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 26POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:26
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.228" (5.80mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.465" (11.81mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):5A
Voltage Rating:-
0 Remaining View Similar

In Stock

$5.03
151

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2-826646-6 2-826646-0
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active
Connector Type Header, Breakaway Header, Breakaway
Contact Type Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 26 20
Number of Rows 1 1
Row Spacing - Mating - -
Number of Positions Loaded All All
Style Board to Board or Cable Board to Board or Cable
Shrouding Unshrouded Unshrouded
Mounting Type Through Hole Through Hole
Termination Solder Solder
Fastening Type Push-Pull Push-Pull
Contact Length - Mating 0.228" (5.80mm) 0.228" (5.80mm)
Contact Length - Post 0.126" (3.20mm) 0.126" (3.20mm)
Overall Contact Length 0.465" (11.81mm) 0.465" (11.81mm)
Insulation Height 0.110" (2.79mm) 0.110" (2.79mm)
Contact Shape Square Square
Contact Finish - Mating Gold Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm) 3.90µin (0.099µm)
Contact Finish - Post Tin Tin
Contact Material Brass Brass
Insulation Material Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT)
Features - -
Operating Temperature -65°C ~ 105°C -65°C ~ 105°C
Ingress Protection - -
Material Flammability Rating UL94 V-0 UL94 V-0
Insulation Color Green Green
Current Rating (Amps) 5A 5A
Voltage Rating - -
