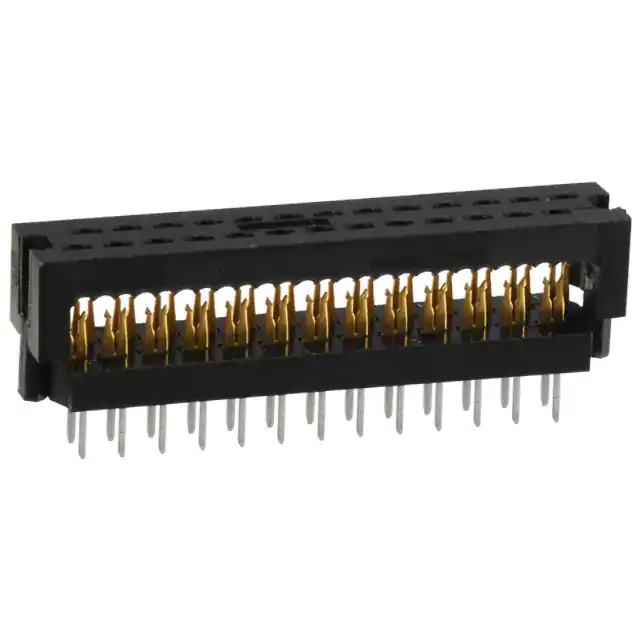

| Part Number | 2-746610-6 | 1-746610-6 | 2-746610-0 | 2-746610-1 | 2-746610-2 | 2-746610-3 | 2-746610-4 | 2-746610-5 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header |
| Number of Positions | 44 | 26 | 50 | 10 | 14 | 24 | 60 | 64 |
| Cable Pitch | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Board-Side Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Gauge | 26-28 AWG, Stranded; 26-30 AWG Solid | 26-28 AWG, Stranded; 26-30 AWG Solid | 26-28 AWG, Stranded; 26-30 AWG Solid | 26-28 AWG, Stranded; 26-30 AWG Solid | 26-28 AWG, Stranded; 26-30 AWG Solid | 26-28 AWG, Stranded; 26-30 AWG Solid | 26-28 AWG, Stranded; 26-30 AWG Solid | 26-28 AWG, Stranded; 26-30 AWG Solid |
| Features | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) |
| Color | Black | Black | Black | Black | Black | Black | Black | Black |
