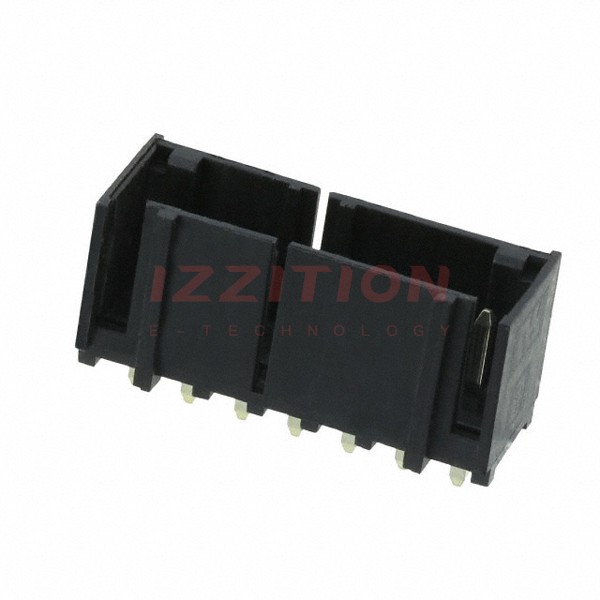

TE Connectivity AMP Connectors-2-647124-7 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	2-647124-7	2-647127-7	2-647125-7	2-647124-8	2-647124-9	2-647126-7	2-647128-7	2-647134-7	2-647123-7	2-647124-2	2-647124-3	2-647124-4	2-647124-5	2-647124-6
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Number of Positions	7	7	7	8	9	7	7	7	7	2	3	4	5	6
Number of Rows	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole	Through Hole, Right Angle	Through Hole	Through Hole	Through Hole, Right Angle	Through Hole	Through Hole, Right Angle	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock
Contact Length - Mating	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)
Contact Length - Post	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)
Overall Contact Length	0.550" (13.97mm)	0.550" (13.97mm)	-	0.550" (13.97mm)	0.550" (13.97mm)	-	0.550" (13.97mm)	-	0.550" (13.97mm)	0.550" (13.97mm)	0.550" (13.97mm)	0.550" (13.97mm)	0.550" (13.97mm)	0.550" (13.97mm)
Insulation Height	0.525" (13.34mm)	0.525" (13.34mm)	0.455" (11.56mm)	0.525" (13.34mm)	0.525" (13.34mm)	0.455" (11.56mm)	0.525" (13.34mm)	0.455" (11.56mm)	0.525" (13.34mm)	0.525" (13.34mm)	0.525" (13.34mm)	0.525" (13.34mm)	0.525" (13.34mm)	0.525" (13.34mm)
Contact Shape	Circular	Square	Square	Circular	Circular	Square	Circular	Square	Square	Circular	Circular	Circular	Circular	Circular
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Gold	Tin	Tin	Tin	Tin	Tin	Tin
Contact Finish Thickness - Mating	150.0µin (3.81µm)	150.0µin (3.81µm)	150.0µin (3.81µm)	150.0µin (3.81µm)	150.0µin (3.81µm)	150.0µin (3.81µm)	150.0µin (3.81µm)	30.0µin (0.76µm)	150.0µin (3.81µm)	150.0µin (3.81µm)	150.0µin (3.81µm)	150.0µin (3.81µm)	150.0µin (3.81µm)	150.0µin (3.81µm)
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled
Features	-	Board Guide	-	-	-	-	Board Guide	-	-	-	-	-	-	-
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge
Voltage Rating	600VAC	600VAC	600VAC	600VAC	600VAC	600VAC	600VAC	600VAC	600VAC	600VAC	600VAC	600VAC	600VAC	600VAC

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	7
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.300" (7.62mm)
Contact Length - Post:	0.125" (3.18mm)
Overall Contact Length:	0.550" (13.97mm)
Insulation Height:	0.525" (13.34mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	150.0µin (3.81µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Glass Filled
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	600VAC
