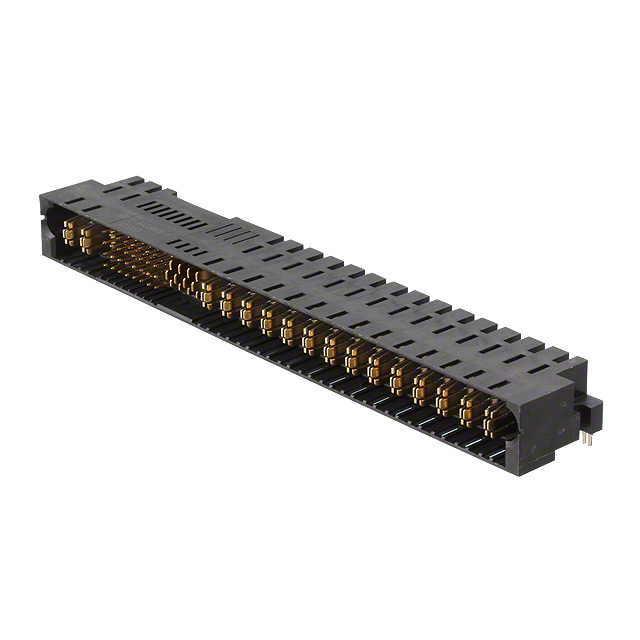

| Part Number | 2-6450840-1 | 2-6450860-1 | 2-6450840-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete |
| Connector Usage | - | - | - |
| Connector Type | Plug, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Plug, Male Pins and Blades |
| Connector Style | Multi-Beam | Multi-Beam | Multi-Beam |
| Number of Positions | 52 | 88 | 28 |
| Number of Positions Loaded | All | All | All |
| Pitch | - | 0.100" (2.54mm) | - |
| Number of Rows | 4 | 4 | 4 |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 32 Signal, 20 Power | 72 Signal, 16 Power | 24 Signal, 4 Power |
| Features | Board Lock, Guide Pin | Board Lock, Guide Pin | Board Lock, Guide Pin |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black |
