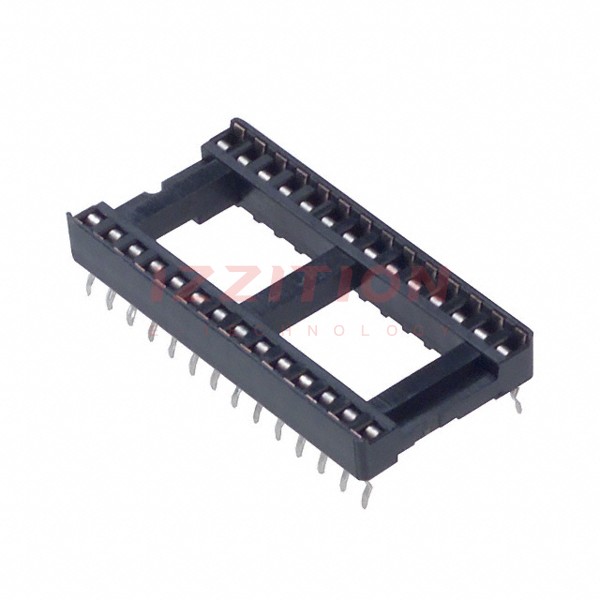

| Part Number | 2-641615-4 | 2-641605-4 | 2-641610-4 | 2-641615-1 | 2-641615-2 | 2-641615-3 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Type | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 28 (2 x 14) | 28 (2 x 14) | 16 (2 x 8) | 28 (2 x 14) | 28 (2 x 14) | 28 (2 x 14) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Gold | Gold | Tin | Gold | Tin |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | - | 30.0µin (0.76µm) | - |
| Contact Material - Mating | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Beryllium Copper | Beryllium Copper | Phosphor Bronze |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle, Vertical | Through Hole | Through Hole |
| Features | Open Frame | Closed Frame | Open Frame | Closed Frame | Open Frame | Open Frame |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Gold | Gold | Gold | Tin | Gold | Tin |
| Contact Finish Thickness - Post | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | - | 30.0µin (0.76µm) | - |
| Contact Material - Post | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Beryllium Copper | Beryllium Copper | Phosphor Bronze |
| Housing Material | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled | - | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | - | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C |
