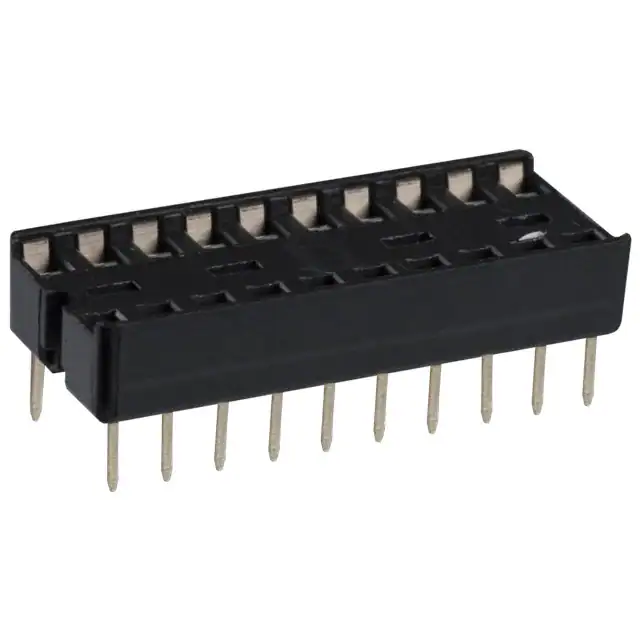

| Part Number | 2-640464-2 | 2-640464-4 | 2-640463-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 20 (2 x 10) | 20 (2 x 10) | 8 (2 x 4) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 15.0µin (0.38µm) | 30.0µin (0.76µm) |
| Contact Material - Mating | Phosphor Bronze | Phosphor Bronze | Beryllium Copper |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Features | Closed Frame | Closed Frame | Closed Frame |
| Termination | Solder | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Tin | Gold | Gold |
| Contact Finish Thickness - Post | - | 15.0µin (0.38µm) | 30.0µin (0.76µm) |
| Contact Material - Post | Phosphor Bronze | Phosphor Bronze | Beryllium Copper |
| Housing Material | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C |
