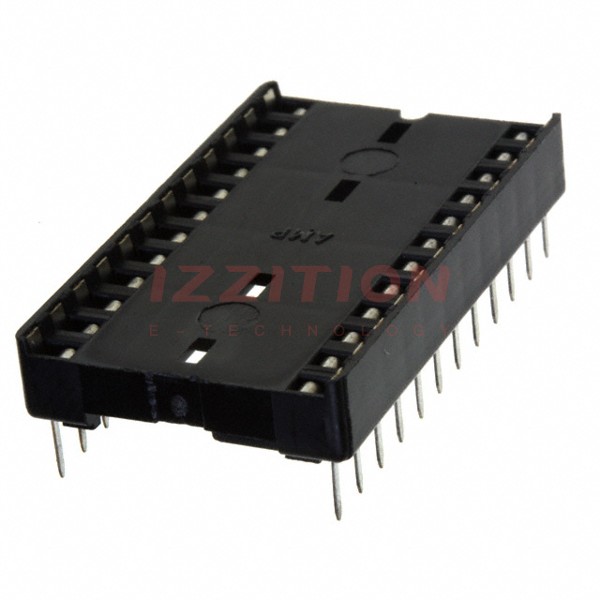

| Part Number | 2-640361-4 | 2-640362-4 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Type | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 24 (2 x 12) | 28 (2 x 14) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | 15.0µin (0.38µm) |
| Contact Material - Mating | Beryllium Copper | Phosphor Bronze |
| Mounting Type | Through Hole | Through Hole |
| Features | Closed Frame | Closed Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Post | 15.0µin (0.38µm) | 15.0µin (0.38µm) |
| Contact Material - Post | Beryllium Copper | Phosphor Bronze |
| Housing Material | Thermoplastic | Thermoplastic, Glass Filled |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
