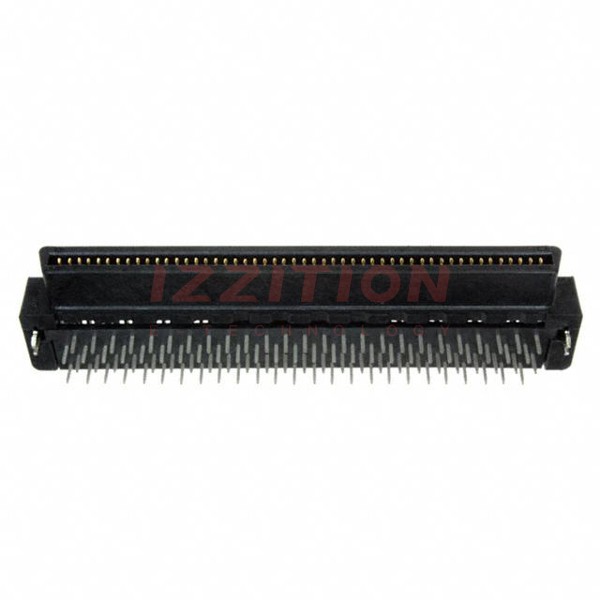

| Part Number | 2-557101-5 | 2-557102-5 | 2-557100-5 | 2-557101-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | Outer Shroud Contacts | Center Strip Contacts | Center Strip Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Plug | Plug | Receptacle |
| Number of Positions | 100 | 100 | 100 | 80 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder |
| Flange Feature | - | - | - | - |
| Type | Board to Board | - | Board to Board | Board to Board |
| Features | Board Lock | Board Lock | Board Lock | Board Lock |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
