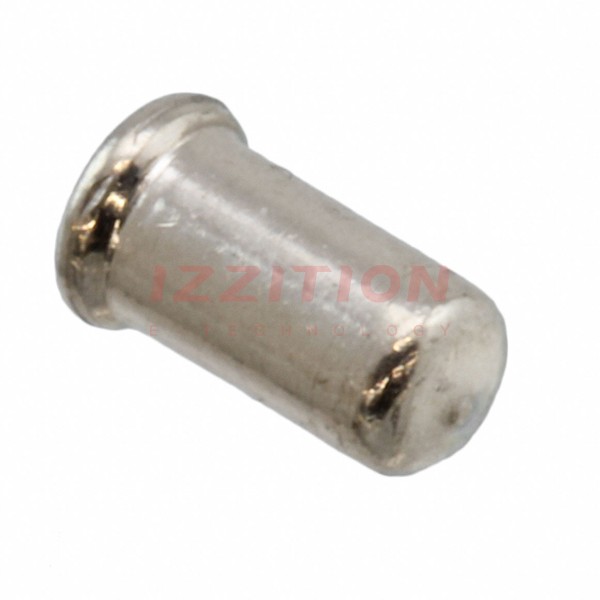

| Part Number | 2-5332070-8 | 2-5332070-9 | 2-5332070-1 | 2-5332070-2 | 2-5332070-3 | 2-5332070-5 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Tail Type | No Tail | No Tail | No Tail | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Length - Overall | 0.143" (3.63mm) | 0.143" (3.63mm) | 0.143" (3.63mm) | 0.143" (3.63mm) | 0.143" (3.63mm) | 0.143" (3.63mm) |
| Accepts Pin Diameter | 0.037" ~ 0.040" (0.94mm ~ 1.02mm) | 0.037" ~ 0.040" (0.94mm ~ 1.02mm) | 0.034" ~ 0.037" (0.86mm ~ 0.94mm) | 0.037" ~ 0.040" (0.94mm ~ 1.02mm) | 0.037" ~ 0.040" (0.94mm ~ 1.02mm) | 0.030" ~ 0.033" (0.76mm ~ 0.84mm) |
| Accepts Square Pin Size | - | - | - | - | - | - |
| Pin Hole Diameter | - | - | - | - | - | - |
| Mounting Hole Diameter | 0.072" (1.83mm) | 0.072" (1.83mm) | 0.072" (1.83mm) | 0.072" (1.83mm) | 0.072" (1.83mm) | 0.072" (1.83mm) |
| Flange Diameter | 0.089" (2.26mm) | 0.089" (2.26mm) | 0.089" (2.26mm) | 0.089" (2.26mm) | 0.089" (2.26mm) | 0.089" (2.26mm) |
| Tail Diameter | - | - | - | - | - | - |
| Socket Depth | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Tin | Gold | Gold | Tin | Gold | Gold |
| Contact Finish Thickness | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
