2-5331677-2
  • Share:

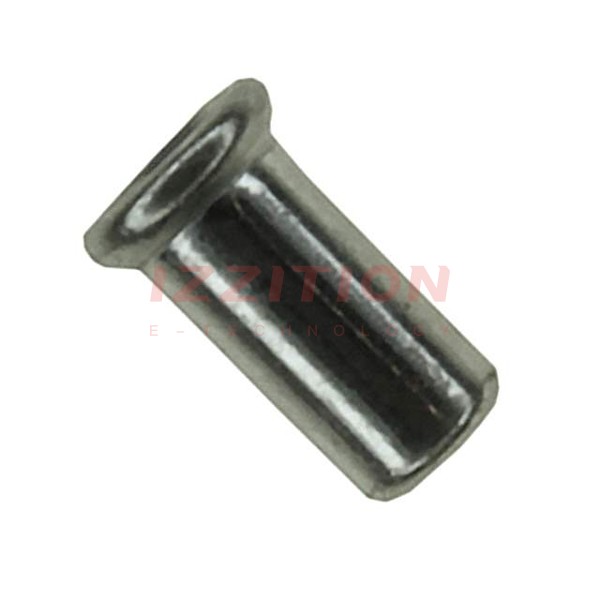

TE Connectivity AMP Connectors 2-5331677-2

Manufacturer No:
2-5331677-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-5331677-2 Datasheet
ECAD Model:
-
Description:
CONN PIN RCPT .030-.033 SOLDER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Tail Type:No Tail
Termination:Solder
Length - Overall:0.138" (3.51mm)
Accepts Pin Diameter:0.030" ~ 0.033" (0.76mm ~ 0.84mm)
Accepts Square Pin Size:-
Pin Hole Diameter:-
Mounting Hole Diameter:0.062" ~ 0.063" (1.57mm ~ 1.60mm)
Flange Diameter:0.080" (2.03mm)
Tail Diameter:-
Socket Depth:0.125" (3.18mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
0 Remaining View Similar

In Stock

$0.84
267

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2-5331677-2 3-5331677-2   2-331677-2
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active
Tail Type No Tail No Tail No Tail
Termination Solder Solder Solder
Length - Overall 0.138" (3.51mm) 0.138" (3.51mm) 0.138" (3.51mm)
Accepts Pin Diameter 0.030" ~ 0.033" (0.76mm ~ 0.84mm) 0.026" ~ 0.029" (0.66mm ~ 0.74mm) 0.030" ~ 0.033" (0.76mm ~ 0.84mm)
Accepts Square Pin Size - - -
Pin Hole Diameter - - -
Mounting Hole Diameter 0.062" ~ 0.063" (1.57mm ~ 1.60mm) 0.062" ~ 0.063" (1.57mm ~ 1.60mm) 0.062" ~ 0.063" (1.57mm ~ 1.60mm)
Flange Diameter 0.080" (2.03mm) 0.080" (2.03mm) 0.080" (2.03mm)
Tail Diameter - - -
Socket Depth 0.125" (3.18mm) 0.125" (3.18mm) 0.125" (3.18mm)
Contact Material Beryllium Copper Beryllium Copper Beryllium Copper
Contact Finish Gold Gold Gold
Contact Finish Thickness 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
