Please send RFQ , we will respond immediately.

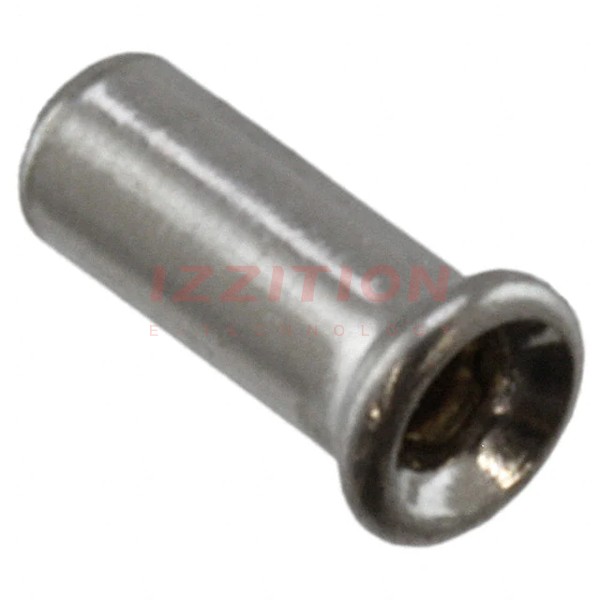

| Part Number | 2-5331272-7 | 2-331272-7 | 2-5331272-3 | 2-5331272-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Tail Type | No Tail | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder | Solder |
| Length - Overall | 0.138" (3.51mm) | 0.138" (3.51mm) | 0.138" (3.51mm) | 0.138" (3.51mm) |
| Accepts Pin Diameter | 0.022" ~ 0.025" (0.56mm ~ 0.64mm) | 0.022" ~ 0.025" (0.56mm ~ 0.64mm) | 0.018" ~ 0.021" (0.46mm ~ 0.53mm) | 0.022" ~ 0.025" (0.56mm ~ 0.64mm) |
| Accepts Square Pin Size | - | - | - | - |
| Pin Hole Diameter | - | - | - | - |
| Mounting Hole Diameter | 0.052" (1.32mm) | 0.052" (1.32mm) | 0.052" (1.32mm) | 0.052" (1.32mm) |
| Flange Diameter | 0.070" (1.77mm) | 0.070" (1.77mm) | 0.070" (1.77mm) | 0.070" (1.77mm) |
| Tail Diameter | - | - | - | - |
| Socket Depth | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Gold | Gold | Tin |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 100.0µin (2.54µm) |
