2-530654-6

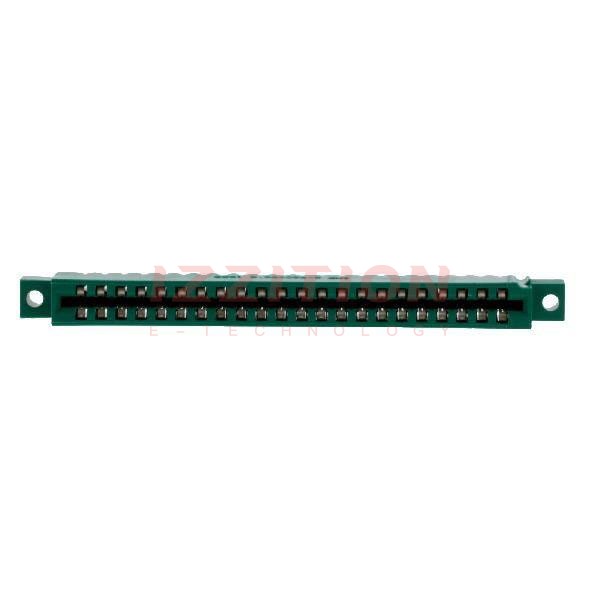

2-530654-6 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity AMP Connectors 2-530654-6
Manufacturer No:
2-530654-6
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
2-530654-6 Datasheet
ECAD Model:
-
Description:
CONN EDGE DUAL FMALE 22POS 0.156
Delivery:
Payment:
Product Attributes
Card Type:
Non Specified - Dual Edge
Gender:
Female
Number of Positions/Bay/Row:
-
Number of Positions:
22
Card Thickness:
0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Number of Rows:
2
Pitch:
0.156" (3.96mm)
Read Out:
Dual
Features:
-
Mounting Type:
Panel Mount
Termination:
Solder Eyelet(s)
Contact Material:
Phosphor Bronze
Contact Finish:
Gold
Contact Finish Thickness:
30.0µin (0.76µm)
Contact Type:
-
Color:
Green
Flange Feature:
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature:
-55°C ~ 105°C
0
Remaining
View Similar
In Stock
UnitPrice:
$13.85
Quantity:
41
