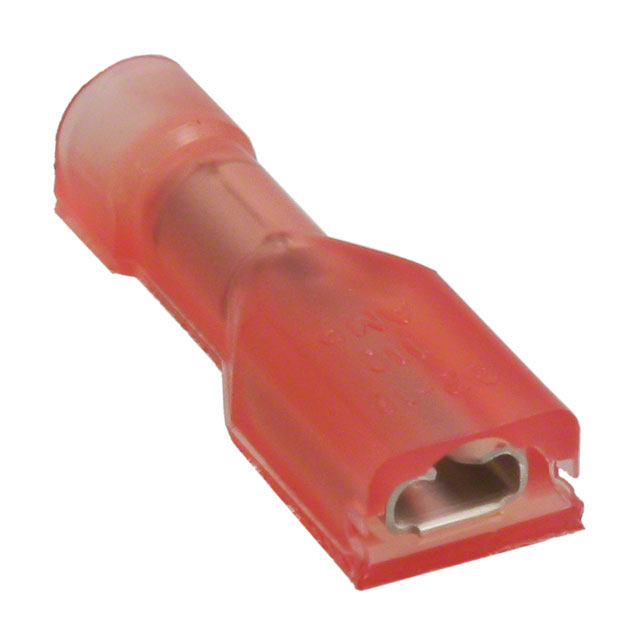

| Part Number | 2-520273-2 | 2-520274-2 | 2-520275-2 | 2-520263-2 | 2-520272-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Female |
| Tab Width | 0.110" (2.79mm), 0.125" (3.18mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.110" (2.79mm), 0.125" (3.18mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | - | - | - | - |
| Length - Overall | 0.735" (18.67mm) | 0.935" (23.75mm) | 0.935" (23.75mm) | 0.935" (23.75mm) | 0.735" (18.67mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 18-22 AWG | 18-22 AWG | 18-22 AWG | 18-22 AWG | 18-22 AWG |
| Insulation | Fully Insulated | Fully Insulated | Fully Insulated | Fully Insulated | Fully Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | Red | Red | Red | Red | Red |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
