2-5176264-1
  • Share:

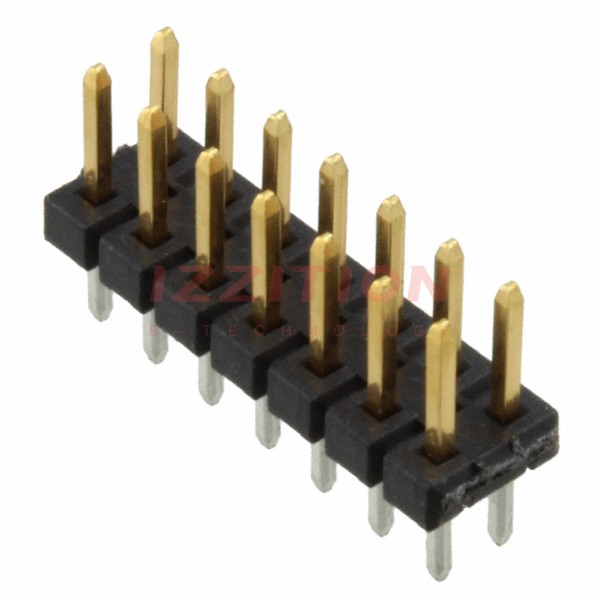

TE Connectivity AMP Connectors 2-5176264-1

Manufacturer No:
2-5176264-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
2-5176264-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 14POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:14
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.157" (4.00mm)
Contact Length - Post:0.102" (2.60mm)
Overall Contact Length:0.319" (8.10mm)
Insulation Height:0.059" (1.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:200VAC
0 Remaining View Similar

In Stock

$1.70
53

Please send RFQ , we will respond immediately.
