Please send RFQ , we will respond immediately.

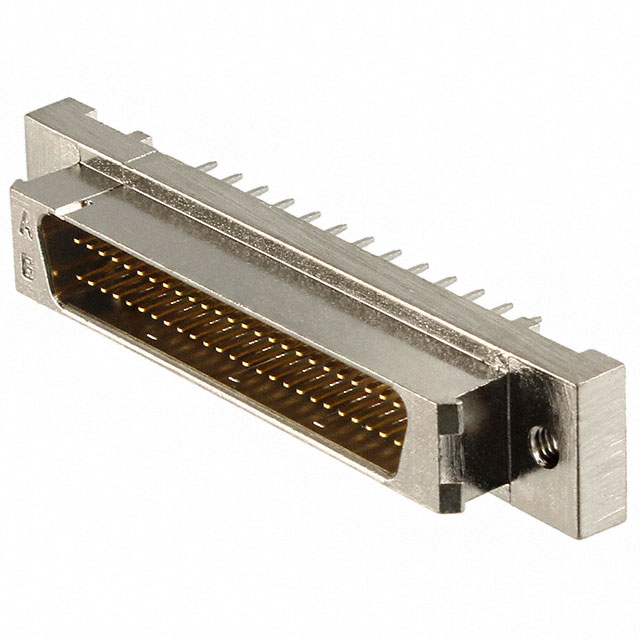

| Part Number | 2-5174339-4 | 2-5174339-5 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Connector Style | D-Type | D-Type |
| Connector Type | Cap, Male Pins | Cap, Male Pins |
| Number of Positions | 50 | 68 |
| Number of Rows | 2 | 2 |
| Mounting Type | Through Hole | Through Hole |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row |
| Contact Type | Signal | Signal |
| Flange Feature | Housing/Shell (M2.5) | Housing/Shell (M2.5) |
| Termination | Solder | Solder |
| Primary Material | - | - |
| Shell Material, Finish | Zinc, Nickel Plated | Zinc, Nickel Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Ingress Protection | - | - |
| Material Flammability Rating | - | - |
| Current Rating (Amps) | 1A | 1A |
| Backset Spacing | - | - |
| Features | Shielded | Shielded |
