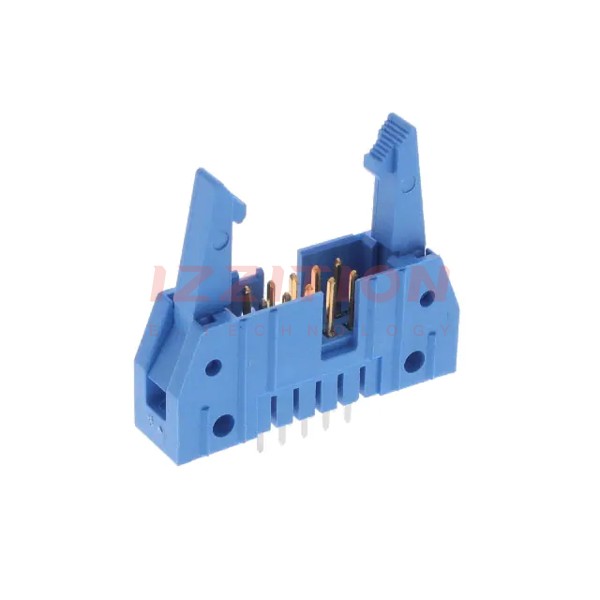

TE Connectivity AMP Connectors 2-5102321-1

Manufacturer No:
2-5102321-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
2-5102321-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 10POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Long
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.155" (3.94mm)
Overall Contact Length:0.684" (17.37mm)
Insulation Height:0.549" (13.94mm)
Contact Shape:Square
Contact Finish - Mating:Gold or Gold-Palladium
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:-
Features:Keying Slot, Mounting Flange
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):1A per Contact
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$4.98
174

Please send RFQ , we will respond immediately.
