Please send RFQ , we will respond immediately.

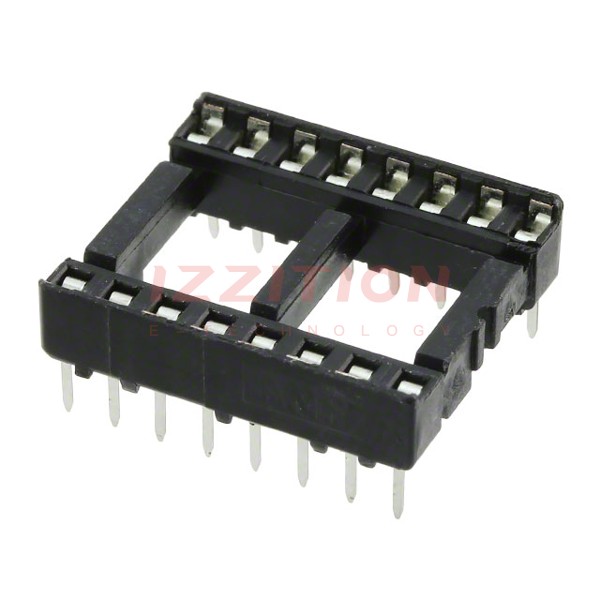

| Part Number | 2-382712-1 | 2-382714-1 | 2-382719-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 16 (2 x 8) | 20 (2 x 10) | 30 (2 x 15) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Features | Open Frame | Open Frame | Open Frame |
| Termination | Solder | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Tin | Tin | Tin |
| Contact Finish Thickness - Post | - | - | - |
| Contact Material - Post | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Housing Material | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
