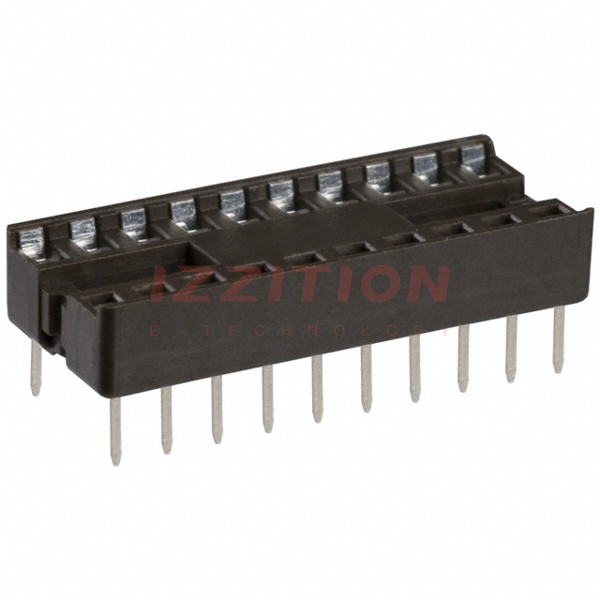

| Part Number | 2-382465-3 | 2-382467-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Type | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.6" (15.24mm) Row Spacing |
| Number of Positions or Pins (Grid) | 20 (2 x 10) | 28 (2 x 14) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Contact Material - Mating | Phosphor Bronze | Phosphor Bronze |
| Mounting Type | Through Hole | Through Hole |
| Features | Closed Frame | Open Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Post | - | - |
| Contact Material - Post | Phosphor Bronze | Phosphor Bronze |
| Housing Material | Thermoplastic | Thermoplastic |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
