Please send RFQ , we will respond immediately.

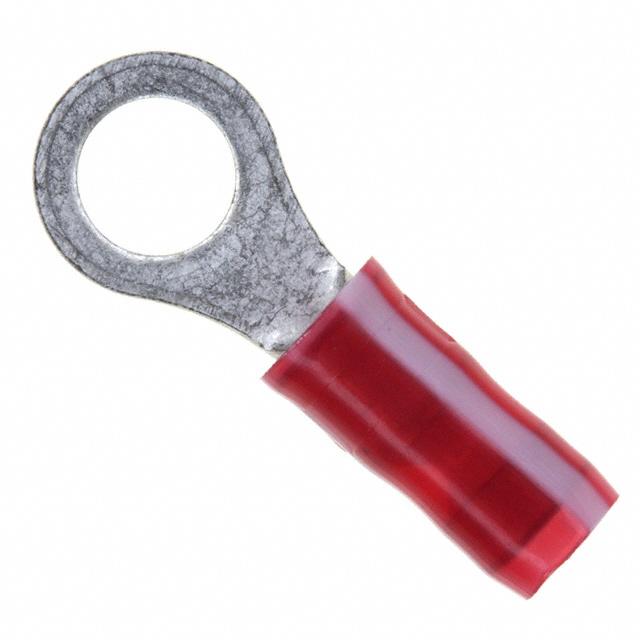

| Part Number | 2-36153-8 | 2-36153-9 | 2-36153-2 | 2-36153-3 | 2-36153-4 | 2-36153-5 | 2-36153-6 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 10 Stud | 10 Stud | 10 Stud | 10 Stud | 10 Stud | 10 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) |
| Length - Overall | 0.909" (23.10mm) | 0.909" (23.10mm) | 0.844" (21.44mm) | 0.909" (23.10mm) | 0.909" (23.10mm) | 0.909" (23.10mm) | 0.909" (23.10mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 20 AWG | 18 AWG | 16-22 AWG | 22 AWG | 20 AWG | 18 AWG | 22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Insulation Restriction | Insulation Restriction | Serrated Termination | Insulation Restriction | Insulation Restriction | Insulation Restriction | Insulation Restriction |
| Color | Red, Red Stripe | Red, White Stripe | Red | Red, Green Stripe | Red, Red Stripe | Red, White Stripe | Red, Green Stripe |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
