Please send RFQ , we will respond immediately.

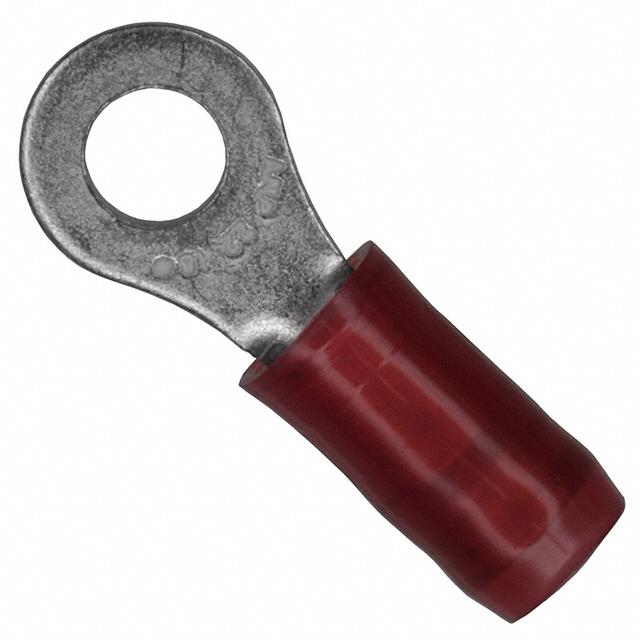

| Part Number | 2-36151-2 | 2-36161-2 | 2-36153-2 | 2-36157-2 | 2-36154-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 6 Stud | 10 Stud | 10 Stud | 6 Stud | 10 Stud |
| Thickness | 0.031" (0.79mm) | 0.039" (0.99mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.281" (7.14mm) | 0.375" (9.53mm) | 0.312" (7.92mm) | 0.343" (8.71mm) | 0.312" (7.92mm) |
| Length - Overall | 0.797" (20.24mm) | 1.083" (27.51mm) | 0.844" (21.44mm) | 0.859" (21.82mm) | 0.844" (21.44mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 10-12 AWG | 16-22 AWG | 14-16 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Yellow | Red | Blue | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
