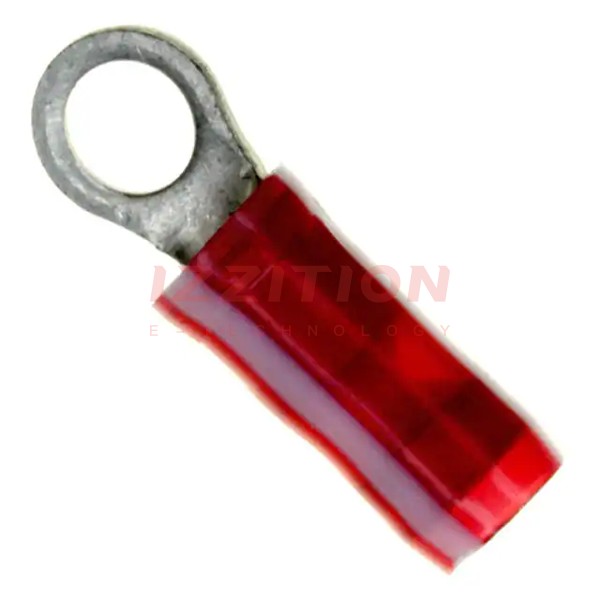

| Part Number | 2-36149-5 | 2-36149-2 | 2-36149-3 | 2-36149-4 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 6 Stud | 6 Stud | 6 Stud | 6 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.218" (5.54mm) | 0.218" (5.54mm) | 0.218" (5.54mm) | 0.218" (5.54mm) |
| Length - Overall | 0.734" (18.64mm) | 0.672" (17.07mm) | 0.734" (18.64mm) | 0.734" (18.64mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 18 AWG | 16-22 AWG | 22 AWG | 20 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated |
| Features | Insulation Restriction | Serrated Termination | Insulation Restriction | Insulation Restriction |
| Color | Red, White Stripe | Red | Red, Green Stripe | Red, Red Stripe |
| Contact Material | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin |
