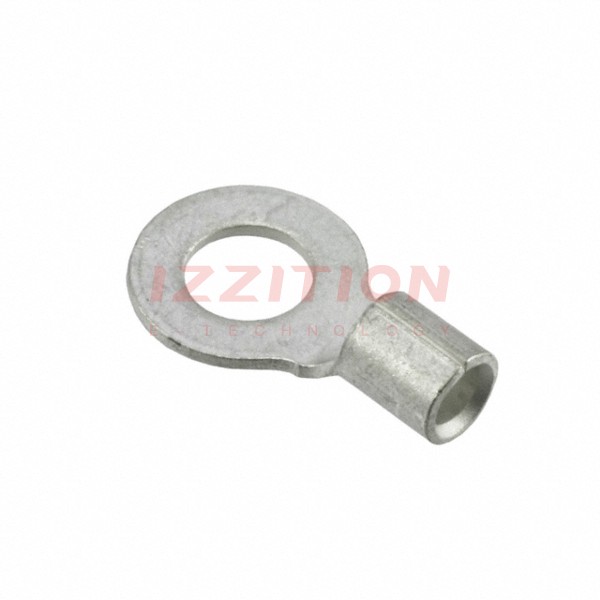

| Part Number | 2-35772-1 | 2-35775-1 | 2-35771-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | 1/4 Stud | 10 Stud |
| Thickness | 0.039" (0.99mm) | 0.048" (1.22mm) | 0.039" (0.99mm) |
| Width - Outer Edges | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Length - Overall | 0.865" (21.97mm) | 0.865" (21.97mm) | 0.865" (21.97mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 14-16 AWG | 10-12 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Heavy Duty, Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - | - |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
