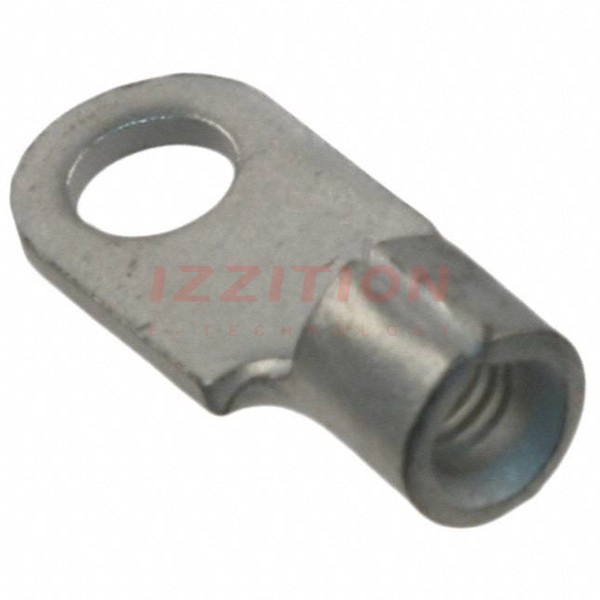

| Part Number | 2-35684-1 | 2-35634-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 6 Stud | 6 Stud |
| Thickness | 0.038" (0.97mm) | 0.048" (1.22mm) |
| Width - Outer Edges | 0.250" (6.35mm) | 0.281" (7.14mm) |
| Length - Overall | 0.654" (16.61mm) | 0.953" (24.21mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 12-14 AWG | 14-16 AWG |
| Insulation | Non-Insulated | Insulated |
| Features | Brazed Seam, Serrated Termination | Heavy Duty, Serrated Termination |
| Color | - | Yellow, Black Stripe |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
