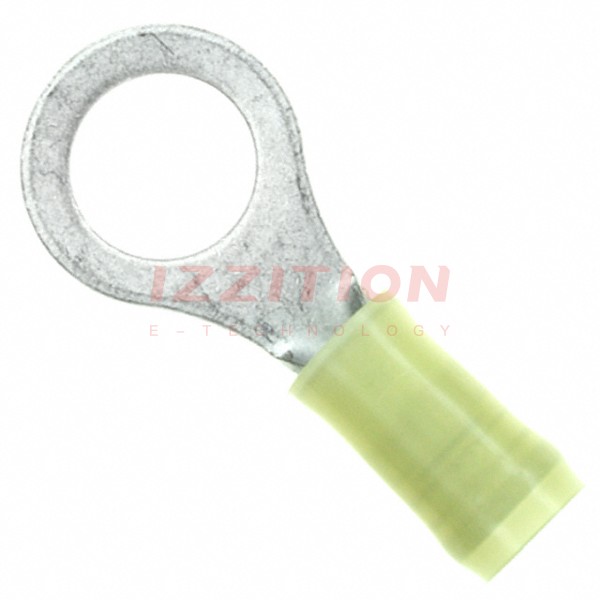

| Part Number | 2-35112-2 | 2-34112-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 3/8 Stud | 10 Stud |
| Thickness | 0.039" (0.99mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.593" (15.06mm) | 0.312" (7.92mm) |
| Length - Overall | 1.414" (35.92mm) | 0.621" (15.77mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 16-22 AWG |
| Insulation | Insulated | Non-Insulated |
| Features | Serrated Termination | Brazed Seam, Serrated Termination |
| Color | Yellow | - |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
