Please send RFQ , we will respond immediately.

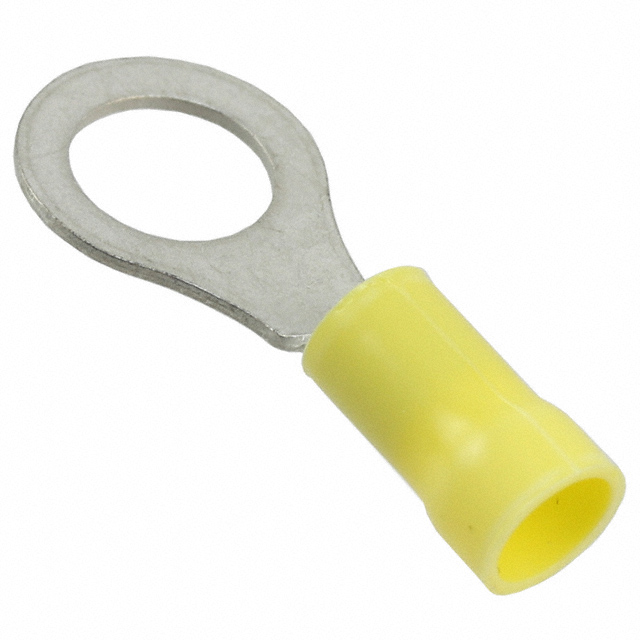

| Part Number | 2-34173-1 | 2-34103-1 | 2-34123-1 | 2-34143-1 | 2-34163-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 3/8 Stud | 2 Stud | 10 Stud | 4 Stud | 5/16 Stud |
| Thickness | 0.040" (1.02mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.593" (15.06mm) | 0.218" (5.54mm) | 0.343" (8.71mm) | 0.281" (7.14mm) | 0.469" (11.91mm) |
| Length - Overall | 1.421" (36.09mm) | 0.449" (11.40mm) | 0.636" (16.15mm) | 0.809" (20.55mm) | 1.090" (27.69mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 16-22 AWG | 14-16 AWG | 16-22 AWG | 14-16 AWG |
| Insulation | Insulated | Non-Insulated | Non-Insulated | Insulated | Insulated |
| Features | Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Yellow | - | - | Red | Blue |
| Contact Material | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
