Please send RFQ , we will respond immediately.

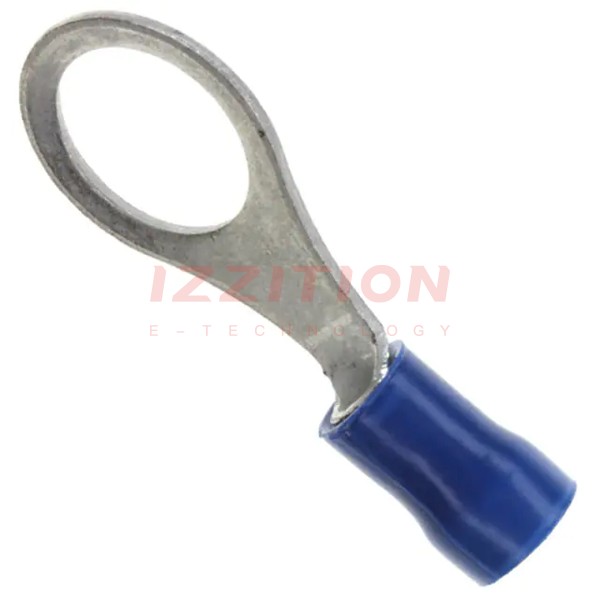

| Part Number | 2-34164-2 | 2-34114-2 | 2-34160-2 | 2-34161-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 3/8 Stud | 5/16 Stud | 8 Stud | 10 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.531" (13.49mm) | 0.469" (11.91mm) | 0.343" (8.71mm) | 0.343" (8.71mm) |
| Length - Overall | 1.248" (31.70mm) | 0.856" (21.74mm) | 0.920" (23.37mm) | 0.920" (23.37mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 16-22 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Insulated | Non-Insulated | Insulated | Insulated |
| Features | Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | - | Blue | Blue |
| Contact Material | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin |
