Please send RFQ , we will respond immediately.

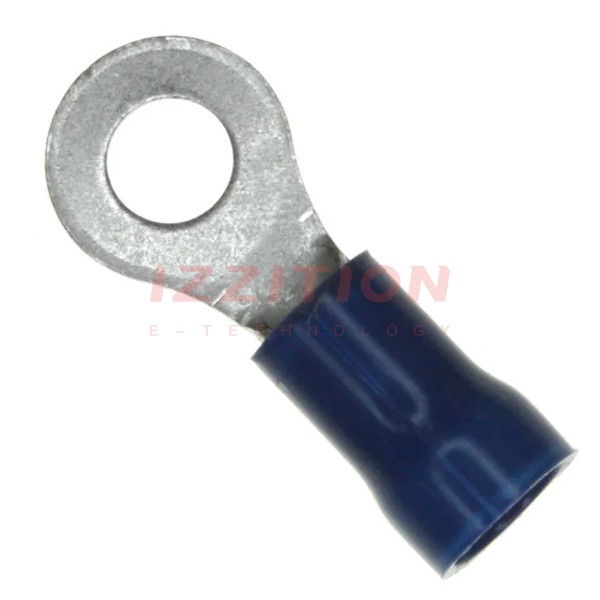

| Part Number | 2-34160-1 | 2-36160-1 | 2-34163-1 | 2-34160-2 | 2-34168-1 | 2-34161-1 | 2-34162-1 | 2-34160-3 | 2-34120-1 | 2-34140-1 | 2-34150-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 10 Stud | 5/16 Stud | 8 Stud | 6 Stud | 10 Stud | 1/4 Stud | 8 Stud | 6 Stud | 2 Stud | 1/4 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.040" (1.02mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.343" (8.71mm) | 0.343" (8.71mm) | 0.469" (11.91mm) | 0.343" (8.71mm) | 0.375" (9.53mm) | 0.343" (8.71mm) | 0.469" (11.91mm) | 0.343" (8.71mm) | 0.250" (6.35mm) | 0.218" (5.54mm) | 0.469" (11.91mm) |
| Length - Overall | 0.871" (22.12mm) | 0.859" (21.82mm) | 1.090" (27.69mm) | 0.920" (23.37mm) | 1.098" (27.89mm) | 0.871" (22.12mm) | 1.090" (27.69mm) | 0.920" (23.37mm) | 0.480" (12.19mm) | 0.684" (17.37mm) | 1.090" (27.69mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 10-12 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Non-Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | Blue | Blue | Blue | Yellow | Blue | Blue | Blue | - | Red | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
