Please send RFQ , we will respond immediately.

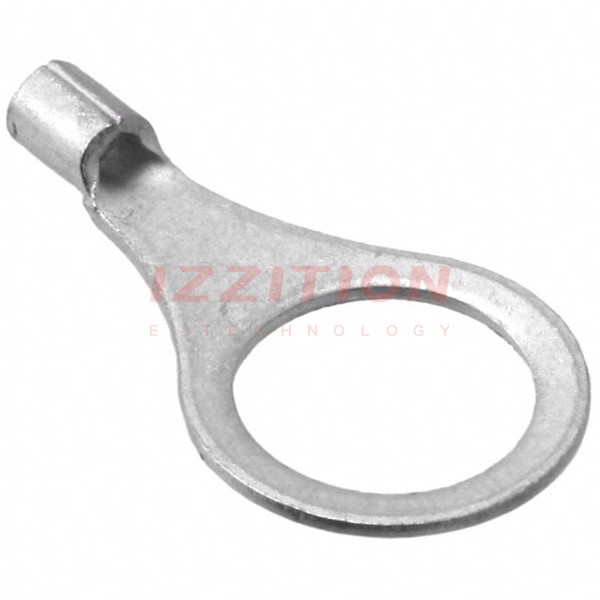

| Part Number | 2-34115-2 | 2-34105-2 | 2-34112-2 | 2-34113-2 | 2-34114-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 3/8 Stud | 6 Stud | 10 Stud | 1/4 Stud | 5/16 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.531" (13.49mm) | 0.218" (5.54mm) | 0.312" (7.92mm) | 0.469" (11.91mm) | 0.469" (11.91mm) |
| Length - Overall | 0.995" (25.27mm) | 0.449" (11.40mm) | 0.621" (15.77mm) | 0.856" (21.74mm) | 0.856" (21.74mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - | - | - | - |
| Contact Material | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | - | Tin |
