Please send RFQ , we will respond immediately.

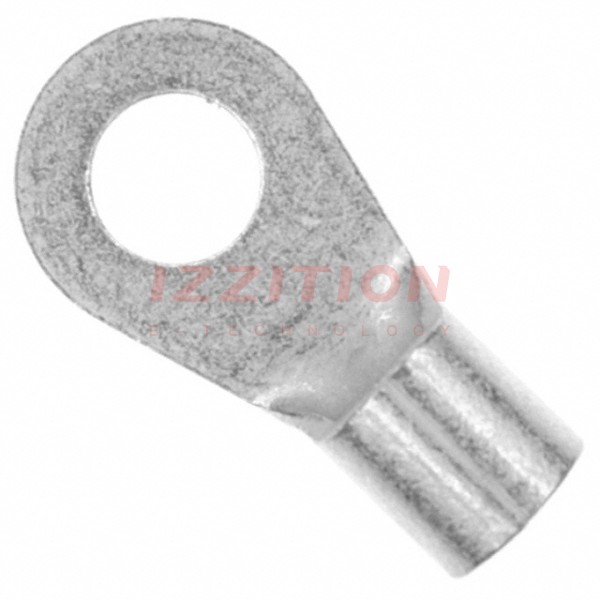

| Part Number | 2-33466-1 | 2-33466-3 | 2-33466-4 | 2-33456-1 | 2-33462-1 | 2-33465-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 5/16 Stud | 5/16 Stud | 5/16 Stud | 6 Stud | 5/16 Stud | 1/4 Stud |
| Thickness | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.039" (0.99mm) | 0.048" (1.22mm) | 0.057" (1.45mm) |
| Width - Outer Edges | 0.625" (15.88mm) | 0.625" (15.88mm) | 0.625" (15.88mm) | 0.375" (9.53mm) | 0.594" (15.09mm) | 0.625" (15.88mm) |
| Length - Overall | 1.246" (31.65mm) | 1.246" (31.65mm) | 1.246" (31.65mm) | 0.765" (19.43mm) | 1.168" (29.67mm) | 1.246" (31.65mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 6 AWG | 6 AWG | 6 AWG | 10-12 AWG | 8 AWG | 6 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - | - | - | - | - |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Gold | Tin | Tin | Tin | Tin | Tin |
