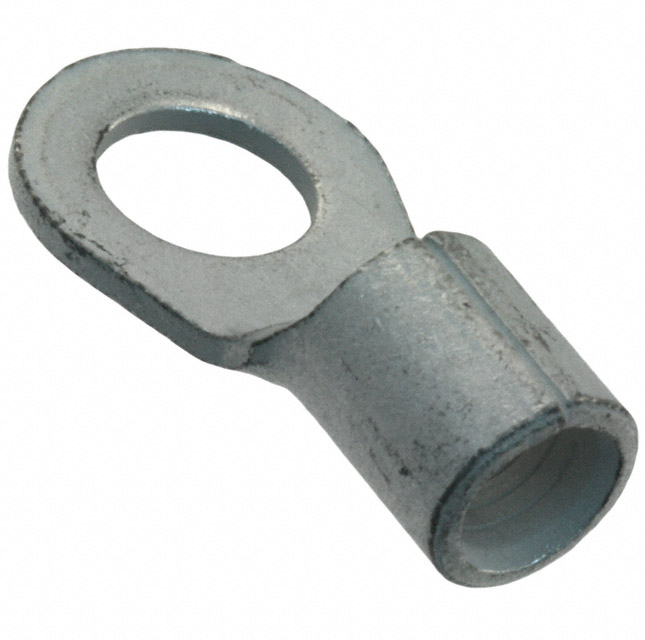

| Part Number | 2-33461-4 | 2-33463-4 | 2-33469-4 | 2-33466-4 | 2-33467-4 | 2-33461-2 | 2-33461-3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | 3/8 Stud | 1/4 Stud | 5/16 Stud | 3/8 Stud | 1/4 Stud | 1/4 Stud |
| Thickness | 0.048" (1.22mm) | 0.048" (1.22mm) | 0.070" (1.78mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.048" (1.22mm) | 0.048" (1.22mm) |
| Width - Outer Edges | 0.469" (11.91mm) | 0.594" (15.09mm) | 0.656" (16.66mm) | 0.625" (15.88mm) | 0.625" (15.88mm) | 0.469" (11.91mm) | 0.469" (11.91mm) |
| Length - Overall | 0.933" (23.70mm) | 1.168" (29.67mm) | 1.314" (33.38mm) | 1.246" (31.65mm) | 1.246" (31.65mm) | 0.933" (23.70mm) | 0.933" (23.70mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 8 AWG | 8 AWG | 4 AWG | 6 AWG | 6 AWG | 8 AWG | 8 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - | - | - | - | - | - |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
