Please send RFQ , we will respond immediately.

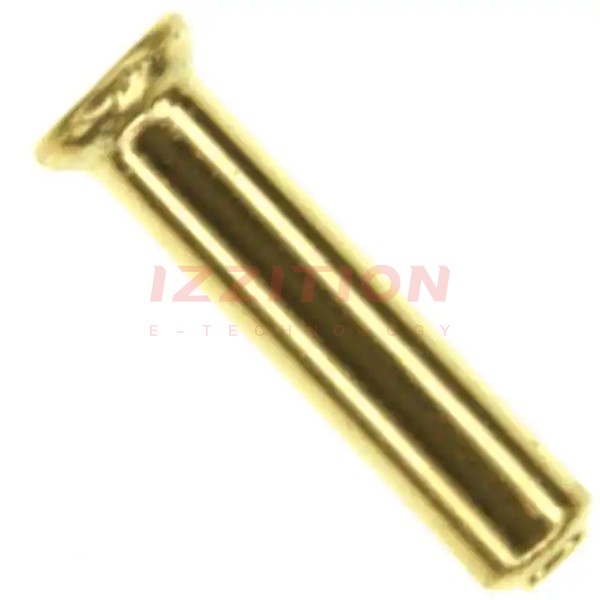

| Part Number | 2-332095-2 | 2-332095-4 | 2-332095-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active |
| Tail Type | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder |
| Length - Overall | 0.178" (4.52mm) | 0.178" (4.52mm) | 0.178" (4.52mm) |
| Accepts Pin Diameter | 0.013" ~ 0.020" (0.33mm ~ 0.51mm) | 0.013" ~ 0.020" (0.33mm ~ 0.51mm) | 0.013" ~ 0.020" (0.33mm ~ 0.51mm) |
| Accepts Square Pin Size | - | - | - |
| Pin Hole Diameter | - | - | - |
| Mounting Hole Diameter | 0.041" (1.04mm) | 0.041" (1.04mm) | 0.041" (1.04mm) |
| Flange Diameter | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
| Tail Diameter | - | - | - |
| Socket Depth | 0.165" (4.19mm) | 0.165" (4.19mm) | 0.165" (4.19mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
