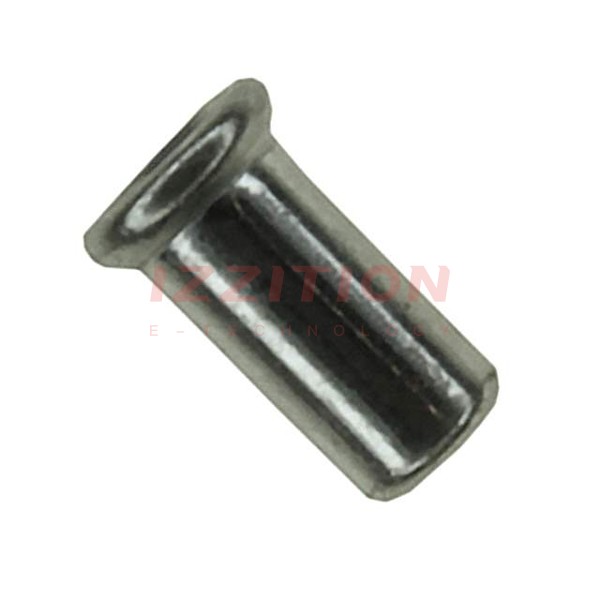

| Part Number | 2-331677-7 | 2-331677-9 | 2-331677-2 | 2-331677-6 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active |
| Tail Type | No Tail | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder | Solder |
| Length - Overall | 0.138" (3.51mm) | 0.138" (3.51mm) | 0.138" (3.51mm) | 0.138" (3.51mm) |
| Accepts Pin Diameter | 0.026" ~ 0.029" (0.66mm ~ 0.74mm) | 0.030" ~ 0.033" (0.76mm ~ 0.84mm) | 0.030" ~ 0.033" (0.76mm ~ 0.84mm) | 0.030" ~ 0.033" (0.76mm ~ 0.84mm) |
| Accepts Square Pin Size | - | - | - | - |
| Pin Hole Diameter | - | - | - | - |
| Mounting Hole Diameter | 0.062" ~ 0.063" (1.57mm ~ 1.60mm) | 0.062" ~ 0.063" (1.57mm ~ 1.60mm) | 0.062" ~ 0.063" (1.57mm ~ 1.60mm) | 0.062" ~ 0.063" (1.57mm ~ 1.60mm) |
| Flange Diameter | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) | 0.080" (2.03mm) |
| Tail Diameter | - | - | - | - |
| Socket Depth | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
