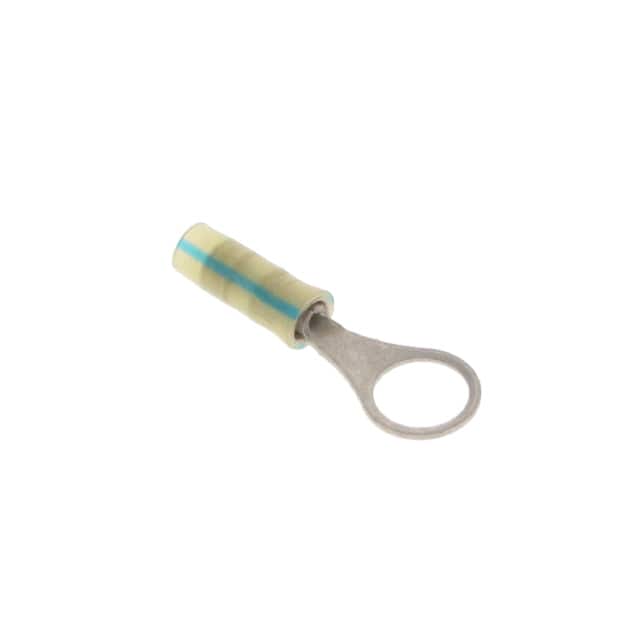

| Part Number | 2-326875-5 | 2-326875-1 | 2-326875-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 6 Stud | 6 Stud |
| Thickness | 0.018" (0.46mm) | 0.018" (0.46mm) | 0.018" (0.46mm) |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.785" (19.94mm) | 0.740" (18.80mm) | 0.785" (19.94mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 24 AWG | 22-26 AWG | 24 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Insulation Restriction, Serrated Termination | Serrated Termination | Insulation Restriction, Serrated Termination |
| Color | Yellow, Blue Stripe | Yellow | Yellow, Blue Stripe |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
