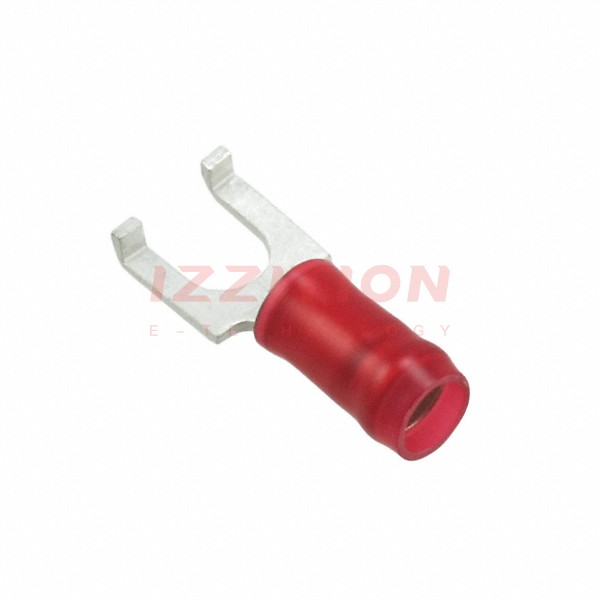

| Part Number | 2-32562-3 | 2-32562-1 | 2-32562-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Flanged | Flanged | Flanged |
| Stud/Tab Size | 8 Stud | 6 Stud | 8 Stud |
| Width - Outer Edges | 0.296" (7.52mm) | 0.296" (7.52mm) | 0.296" (7.52mm) |
| Length - Overall | 0.768" (19.51mm) | 0.768" (19.51mm) | 0.768" (19.51mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Red | Red |
| Contact Finish | Tin | Tin | Tin |
| Contact Material | Copper | Copper | Copper |
