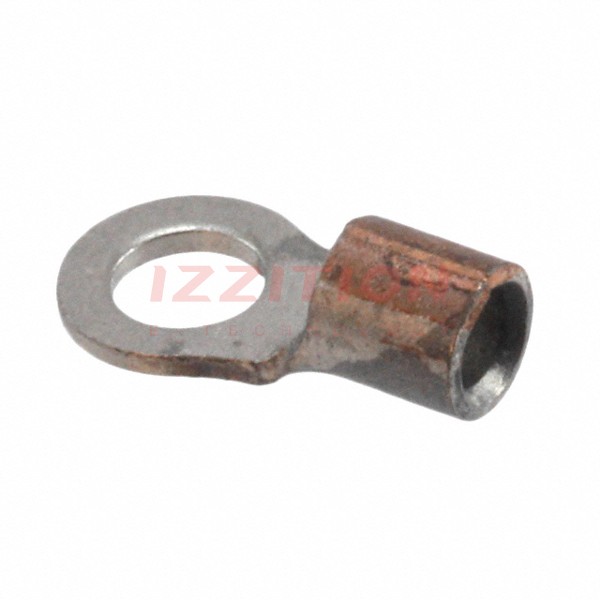

| Part Number | 2-322329-2 | 2-322329-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 6 Stud | 6 Stud |
| Thickness | 0.030" (0.76mm) | 0.030" (0.76mm) |
| Width - Outer Edges | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.480" (12.19mm) | 0.480" (12.19mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, High Temperature, Serrated Termination | Brazed Seam, High Temperature, Serrated Termination |
| Color | Orange | - |
| Contact Material | Nickel | Nickel |
| Contact Finish | - | - |
