| Part Number | 2-321895-2 | 2-321895-4 | 2-321896-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |

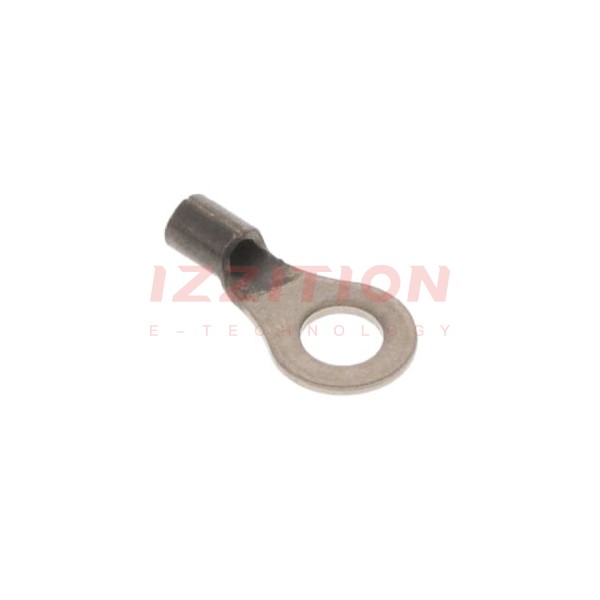

| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 8 Stud | 10 Stud |
| Thickness | 0.030" (0.76mm) | 0.030" (0.76mm) | 0.030" (0.76mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) |
| Length - Overall | 0.621" (15.77mm) | 0.621" (15.77mm) | 0.621" (15.77mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, High Temperature, Serrated Termination | Brazed Seam, High Temperature, Serrated Termination | Brazed Seam, High Temperature, Serrated Termination |
| Color | Gray | Green | Orange |
| Contact Material | Chromel | Alumel | Nickel |
| Contact Finish | - | - | - |
