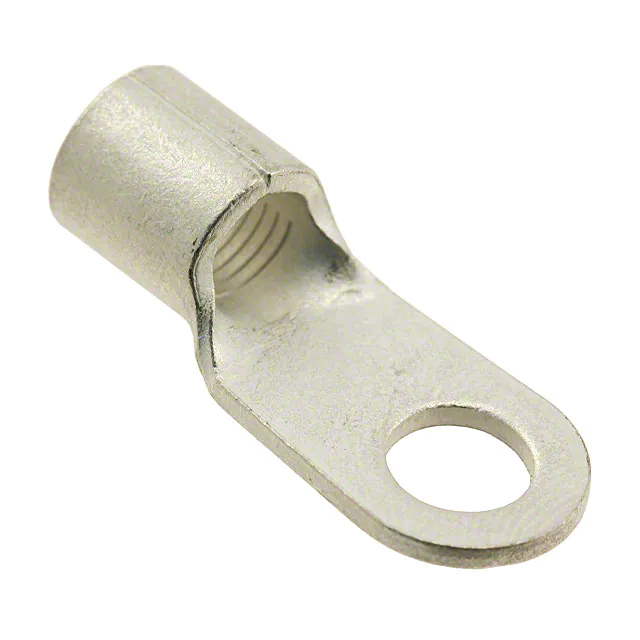

| Part Number | 2-321598-4 | 2-321598-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | 1/4 Stud |
| Thickness | 0.057" (1.45mm) | 0.057" (1.45mm) |
| Width - Outer Edges | 0.468" (11.89mm) | 0.468" (11.89mm) |
| Length - Overall | 1.168" (29.67mm) | 1.168" (29.67mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 6 AWG | 6 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
