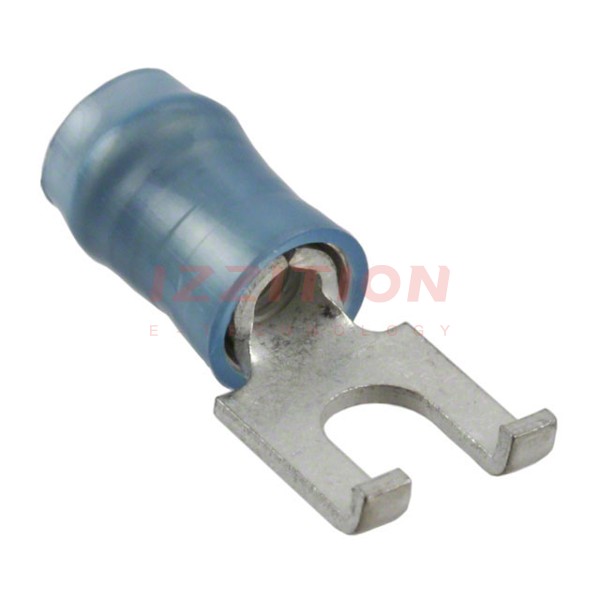

| Part Number | 2-320861-1 | 2-326861-1 | 2-320861-2 | 2-320862-1 | 2-320861-3 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Terminal Type | Flanged | Standard | Flanged | Flanged | Flanged |
| Stud/Tab Size | 6 Stud | 6 Stud | 6 Stud | 8 Stud | 6 Stud |
| Width - Outer Edges | 0.294" (7.47mm) | 0.297" (7.54mm) | 0.294" (7.47mm) | 0.294" (7.47mm) | 0.294" (7.47mm) |
| Length - Overall | 0.768" (19.51mm) | 0.753" (19.13mm) | 0.768" (19.51mm) | 0.768" (19.51mm) | 0.768" (19.51mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 16-22 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | Red | Blue | Blue | Blue |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper | Copper | Copper | Copper | Copper |
