Please send RFQ , we will respond immediately.

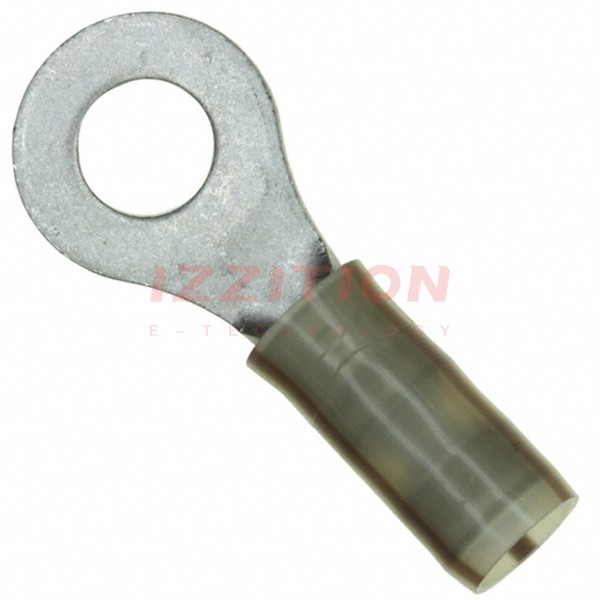

| Part Number | 2-320569-6 | 2-320569-3 | 2-320569-5 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | 1/4 Stud | 1/4 Stud |
| Thickness | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.531" (13.49mm) | 0.531" (13.49mm) | 0.531" (13.49mm) |
| Length - Overall | 1.392" (35.36mm) | 1.322" (33.58mm) | 1.392" (35.36mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 10 AWG | 10-12 AWG | 12 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Insulation Restriction, Serrated Termination | Serrated Termination | Insulation Restriction, Serrated Termination |
| Color | Yellow, Brown Stripe | Yellow | Yellow, Yellow Stripe |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
